Choosing the Right Quality-Engineered Casting Partner

When it comes to sand casting, Quality-Engineered isn’t just a buzzword, it’s a commitment to precision, reliability, and excellence. In the context of sand casting, quality-engineered means using advanced technologies, rigorous processes, and strict standards to produce metal parts that meet exact specifications, especially for demanding industries like automotive, aerospace, and heavy machinery. Picture an engine block for an electric vehicle: a single flaw could lead to performance issues or safety risks. That’s why choosing the right casting partner is critical.

Modern sand casting hinges on precision, repeatability, and quality assurance. Precision ensures parts meet tight tolerances, often down to fractions of a millimeter. Repeatability guarantees every part in a batch is consistent, vital for high-volume production. Quality assurance, backed by tools like 3D scanning and non-destructive testing (NDT), catches defects early, saving time and costs. These advancements are reshaping traditional sand casting, moving it from a craft to a high-tech, data-driven process. In this article, we’ll explore what makes quality-engineered sand casting special and guide you on selecting a casting partner who can deliver.

What Is Quality-Engineered Sand Casting?

Quality-engineered sand casting applies engineering principles to ensure every cast part is precise, reliable, and safe. Unlike traditional sand casting, which often relied on manual methods and basic checks, this approach uses cutting-edge tools and processes to achieve superior results. It’s built on three pillars: precision (meeting exact tolerances), consistency (uniform parts across batches), and traceability (tracking every step for accountability).

This matters immensely for safety-critical parts, like automotive engine components or structural supports in heavy machinery. A defect in these parts could cause failures, endangering lives or costing millions. Quality-engineered sand casting reduces these risks by catching issues early through advanced inspections and robust quality controls.

Compared to traditional sand casting, which might tolerate slight variations or rely on visual inspections, quality-engineered casting uses technologies like 3D scanning, automated systems, and advanced mold materials. It’s the difference between a good-enough part and one that meets the strictest industry standards.

3D Scanning for Dimensional Accuracy

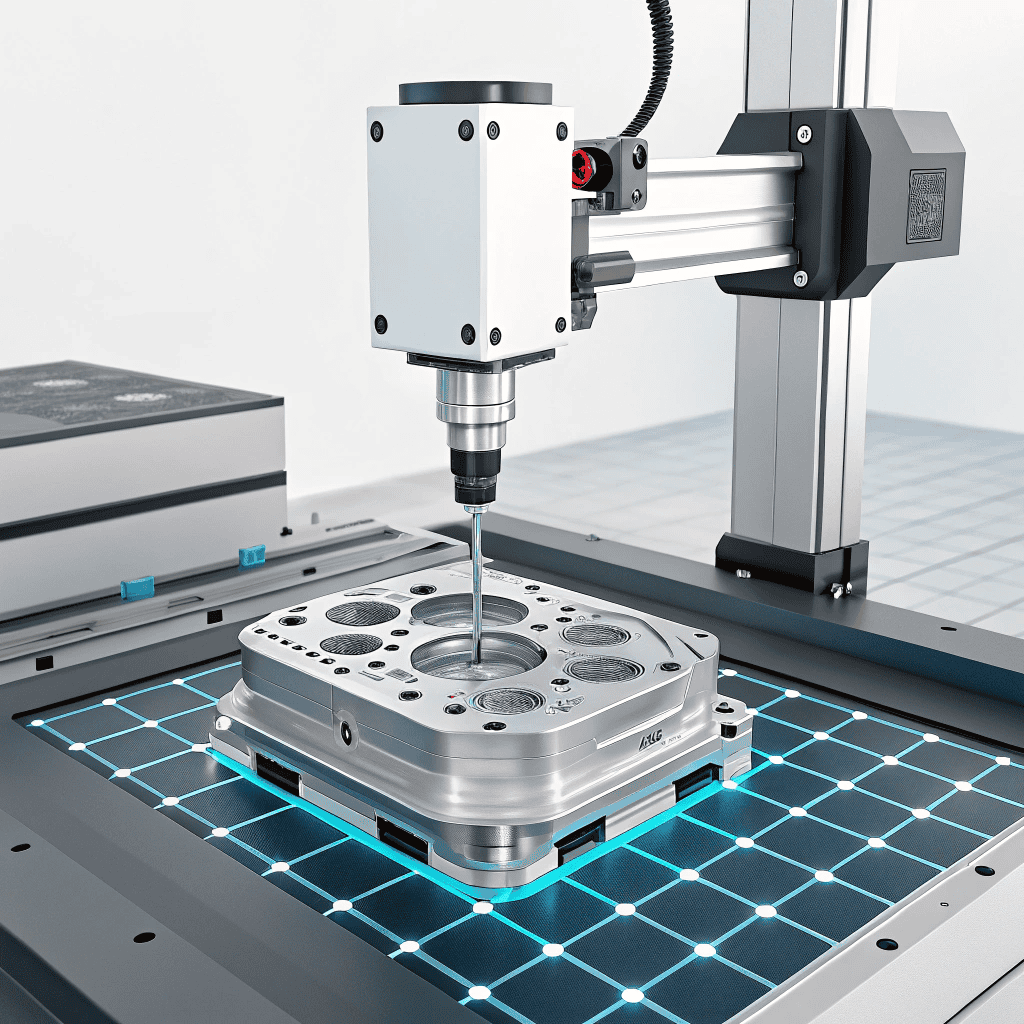

3D scanning is a cornerstone of quality-engineered sand casting, ensuring dimensional accuracy at every stage. Before casting, scanners—like laser, structured light, or computed tomography (CT)—map the sand mold or core, verifying it matches the design. Post-casting, they check the finished part against the CAD model to confirm tolerances and spot deviations.

Highly precise and reliable part inspection is crucial for product quality and reliability in the industrial and manufacturing sector. In the course, if digitalization, metrology 3D scanning technology has proven an excellent tool, facilitating workflows while significantly shortening them at the same time. With the increasing invaluable and affordable metrology 3D scanners, the gap between 3D scanning and other measuring technologies is closing.

Laser scanning, for instance, uses a laser beam to create a detailed point cloud of the mold’s surface. CT scanning offers a 3D view of internal structures, perfect for detecting hidden flaws. Structured light scanning projects patterns to build precise digital models. These tools ensure molds are flawless and parts are accurate.

The benefits are game-changing. 3D scanning supports reverse engineering, recreating parts without original designs. It enables tolerance verification, ensuring parts meet specs for applications like electric vehicle components. And it speeds up prototyping, cutting validation time and accelerating product development. A partner with advanced scanning capabilities is non-negotiable for quality results.

Sand Abrasion and Its Impact on Casting Quality

Sand abrasion is a hidden threat in sand casting, where molten metal erodes the sand mold or core, leading to rough surfaces or dimensional inaccuracies. It’s a big deal because it affects surface finish, leaving parts that may need costly rework, and dimensional stability, causing parts to fall outside tolerances.

Abrasion happens when the force and heat of molten metal wear away the sand, especially in complex or thin mold sections. To counter this, quality-engineered casting uses smart techniques. Binder selection, like resin-based systems, creates tougher molds. Mold coatings, such as zircon washes, add a protective layer, reducing wear and improving finish. Other tactics include optimizing mold design to reduce turbulence and using high-quality sands with better abrasion resistance.

A casting partner who prioritizes abrasion control ensures smoother, more accurate parts, minimizing secondary machining and boosting efficiency.





重试





错误原因

Once you’ve sourced high-quality molding sand, it’s essential to monitor and maintain its properties consistently. Regular sand testing is a critical part of this process. Key tests for molding sand include:

Green Sand Properties: Assess properties like green compression strength, green shear strength, and compactibility to ensure the sand can hold its shape and support the casting.

Damage Check: Ensuring Structural Integrity

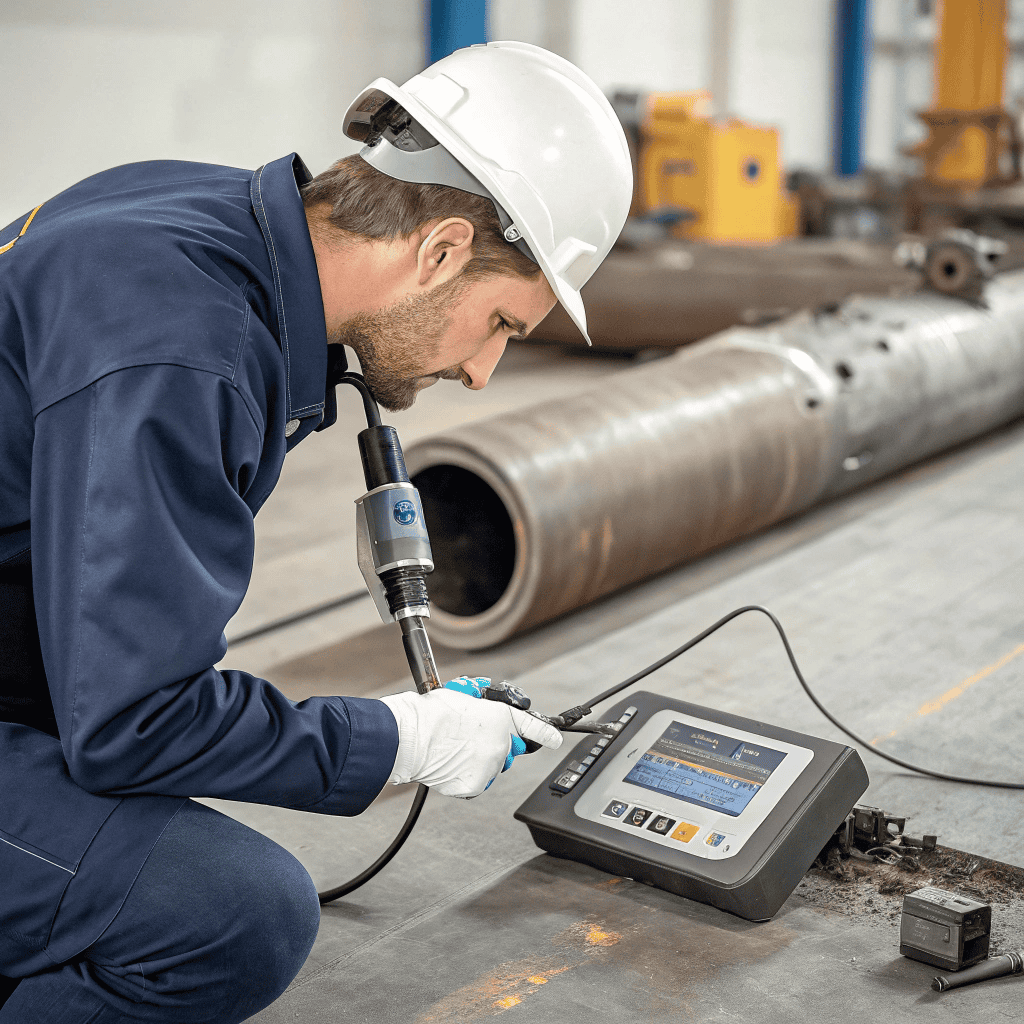

Even the best processes can’t eliminate all defects, so rigorous damage checks are essential. Quality-engineered sand casting relies on non-destructive testing (NDT) methods like X-ray, ultrasonic testing, and dye penetrant inspection. X-ray reveals internal flaws like porosity. Ultrasonic testing uses sound waves to detect cracks or voids. Dye penetrant highlights surface cracks with a visible dye.

Visual and digital inspections complement NDT. Technicians check for surface issues like misruns (incomplete mold filling) or cracks, while 3D scanners provide precise measurements. Increasingly, automated damage detection systems use AI to analyze scans and flag issues in real time, streamlining quality assurance.

A casting partner with robust NDT and inspection capabilities ensures every part is structurally sound, reducing risks and building trust in the final product.

Case Studies or Industrial Applications

Real-world examples show the power of quality-engineered sand casting.

 Example 1 – CT Scanning & 3D Validation for Engine Blocks

• North Star Imaging (NSI) features case studies detailing CT and 3D scanning applications in casting—used for defect detection, porosity analysis, and dimensional validation against CAD models. This closely mirrors your description of post-casting QA within tight tolerances

• The UK’s Finecast offers CT-based validation for engine blocks and cylinder heads, comparing scans against CAD for dimensional accuracy and flaw detection.

• The Institute of Mechanical Engineers discusses how CT scanning is already making a “fundamental difference” in optimizing engine block/head performance and dimensional control.

These examples reinforce the use of CT and 3D scanning in reducing defects and enhancing precision in critical components like engine blocks.

Example 2 – Resin-Bonded Sand with Zircon Coatings

• Many foundries use resin-bonded sand systems, especially phenolic or furan resin types, to improve dimensional accuracy and surface finish—typically saving machining time.
• Zircon-based coatings (like zircon spirit/alcohol or water-based zircon) are commonly applied to molds and cores to prevent metal penetration, improve surface finish, and reduce sand erosion.

• Shell molding and coated-sand processes using zircon coatings are widely acknowledged for improving surface roughness and reducing defects in heavy-duty castings.


These real-world practices align closely with your description of improved surface quality, reduced machining, and lower scrap rates.

Choosing the Right Quality-Engineered Casting Partner

Sand casting is a process that utilizes non-reusable sand molds to form metal castings. On one hand, casting is a deceptively simple manufacturing process: anyone who has formed castles at the beach knows sand can be used to make detailed shapes. However in a foundry, dealing with the heat of molten metal, many factors must be considered for success. Casting is used to make metal components of all sizes, ranging from a few ounces to several tons. Sand molds can be formed to create castings with fine exterior detail, inner cores, and other shapes. Nearly any metal alloy can be sand cast.  Hollows are made in moistened sand, filled with molten metal, and left to cool.

Selecting a casting partner is a make-or-break decision. Here’s what to look for and questions to ask to ensure they deliver quality-engineered results according to forging and casting QC inspection protocols.

What to Look For

1. ISO Certifications and Quality Standards

Certifications are a non-negotiable starting point. Look for partners with ISO 9001 certification, which ensures they follow a robust quality management system. For industries like automotive or aerospace, additional certifications like IATF 16949 (for automotive) or AS9100 (for aerospace) are critical, as they demonstrate compliance with sector-specific quality and safety standards.

A standard is a document that regulates the specifics of certain processes, services, use of materials etc. First, experts in the field compile it. Then, the standard is authorised by a recognised body. Those include international standard organisations, for example ISO and IEC, and their national members.

These certifications aren’t just badges, they signal that the foundry has documented processes, regular audits, and a commitment to continuous improvement. A certified partner is more likely to deliver consistent, high-quality parts and handle complex requirements with precision.

2. Advanced Quality Assurance (QA) Processes

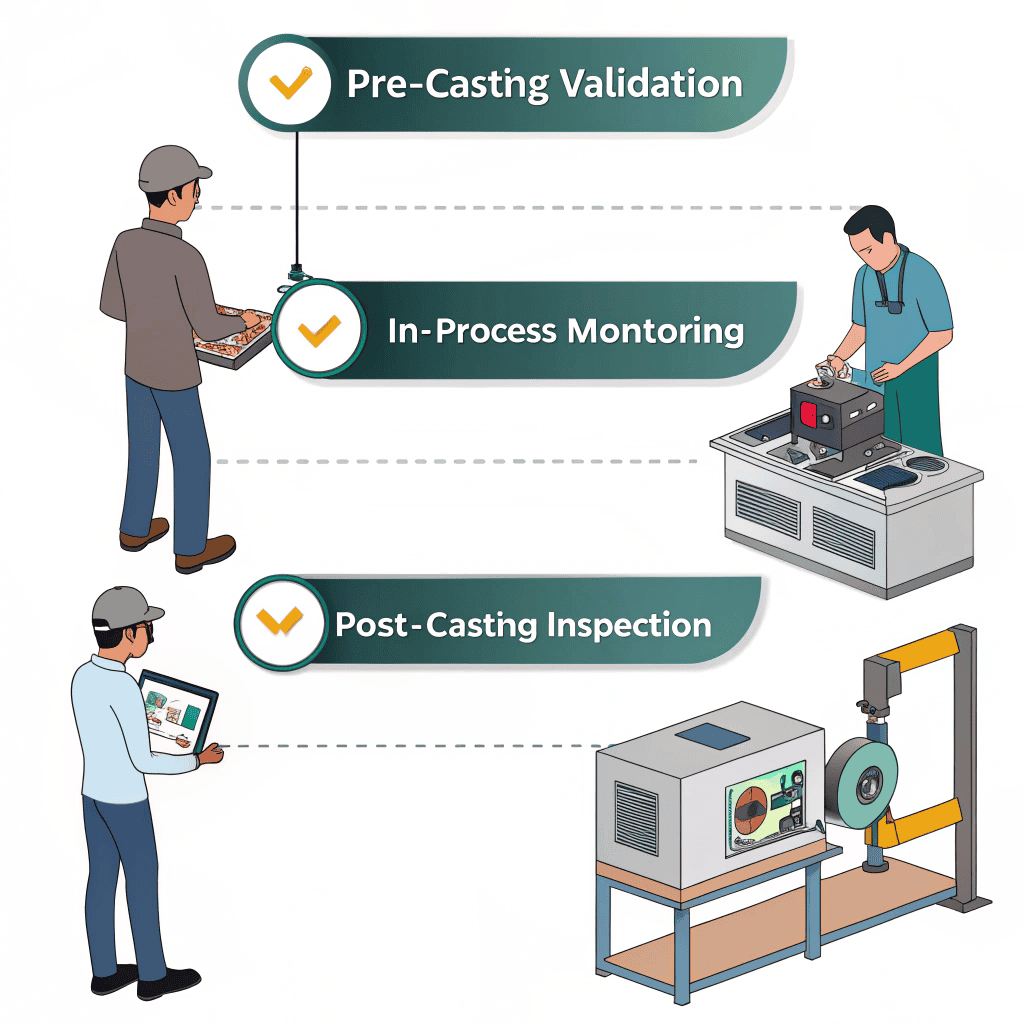

A top-tier casting partner invests in comprehensive QA processes to catch issues before they become problems. This includes:

• Pre-Casting Validation: Using casting tools like 3D scanning (e.g., CT, laser, or structured light) to verify that sand molds and cores meet design specifications.
• In-Process Monitoring: Employing sensors or software to track variables like temperature, pressure, and mold integrity during casting.
• Post-Casting Inspection: Conducting non-destructive testing (NDT) methods such as X-ray, ultrasonic, or dye penetrant inspections to detect internal and surface defects like porosity, cracks, or misruns.

There are several stages in the sand casting process when quality control methods are utilized to choose the best one. So, ask potential partners about their QA protocols. Do they have automated systems for real-time defect detection? How do they document and trace quality issues? A strong QA process minimizes defects and ensures traceability, which is crucial for safety-critical parts.

3. Advanced Scanning and Inspection Equipment

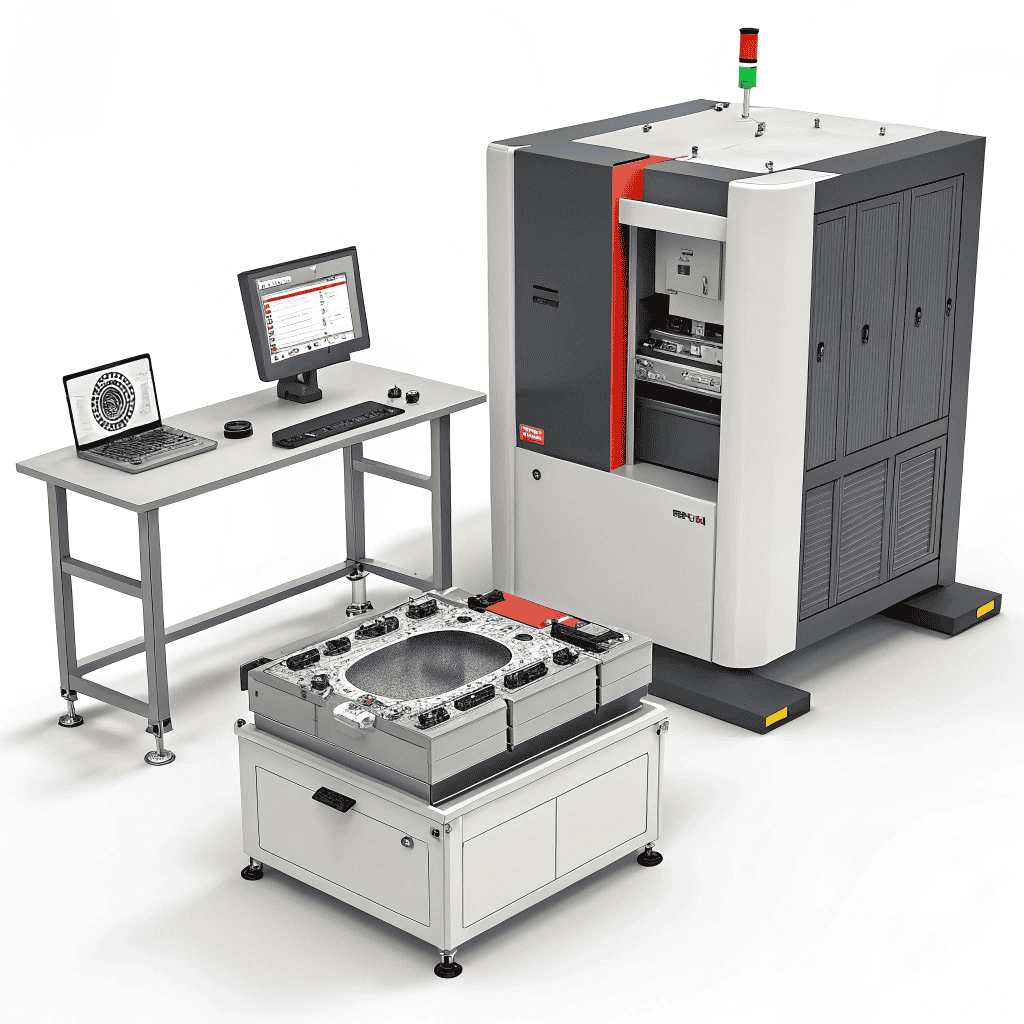

Modern sand casting relies heavily on technologies like 3D scanning to achieve dimensional accuracy and verify tolerances. A quality partner should have state-of-the-art equipment, such as:

• CT Scanners: For detailed internal inspections of molds and parts, ideal for detecting hidden flaws.
• Laser Scanners: For high-precision surface mapping to ensure molds and parts match CAD designs.
• Structured Light Scanners: For fast, accurate 3D modeling, especially useful in prototyping and reverse engineering.

These tools enable faster prototyping, precise tolerance verification, and even reverse engineering of legacy parts. A foundry with advanced scanning capabilities can catch deviations early, reducing waste and ensuring parts meet your exact specifications.

4. OEM/ODM Capabilities

If you’re an Original Equipment Manufacturer (OEM) or need Original Design Manufacturer (ODM) services, your casting partner should offer tailored solutions. This means they can:

• Produce custom components based on your designs (OEM).
• Design and develop parts from scratch based on your requirements (ODM).
• Handle complex geometries, tight tolerances, and a range of alloys, from aluminum to steel, for applications like electric vehicle components or heavy machinery parts.

Look for a partner with experience in your industry and a track record of delivering precision-cast components. They should also be able to scale production to meet your volume needs, whether you’re prototyping a single part or producing thousands.

5. Expertise in Abrasion Control and Material Selection

Sand abrasion—erosion of the mold or core during casting—can compromise surface finish and dimensional accuracy. A quality partner knows how to mitigate this through:

• Binder Selection: Using high-strength binders like resin-based systems to create durable molds.
• Mold Coatings: Applying protective coatings, such as zircon-based washes, to reduce wear and improve surface and tool quality.
• Material Expertise: Selecting the right sand (e.g., high-quality silica or specialty sands) and alloys to match your part’s performance requirements.

Ask about their approach to abrasion control and how they ensure smooth, precise castings, especially for parts requiring minimal secondary machining.

6. Proven Track Record and Case Studies

A reliable partner should have a portfolio of successful projects that demonstrate their capabilities. Look for case studies or examples in industries similar to yours. For instance:

• Automotive: A foundry that produced engine blocks using 3D scan QA to achieve tolerances within 0.1 mm, reducing defects by 20%.
• Heavy Machinery: A partner that improved surface finish on large parts by optimizing mold coatings, cutting machining time by 30%.

These examples show real-world results, like reduced scrap rates, lower rework costs, or faster production timelines. Ask for references or data on how their processes have driven measurable improvements.

7. Flexibility and Collaboration

A great casting partner doesn’t just follow instructions—they collaborate with you to optimize designs, materials, and processes. They should offer:

• Design Support: Helping refine part designs for castability, reducing defects and production costs.
• Prototyping Services: Using rapid prototyping to validate designs quickly, especially for industries like electric vehicles where speed to market is critical.
• Scalability: Adapting to your needs, whether you require small batches or high-volume production.

Look for a partner who communicates clearly, responds to feedback, and treats your project as a partnership, not just a transaction.

Questions to Ask Your Supplier

1. What ISO certifications do you hold, and how do you maintain compliance?
2. Can you provide details on your 3D scanning and NDT capabilities?
3. How do you control sand abrasion to ensure surface finish and dimensional accuracy?
4. What’s your process for handling safety-critical parts, from mold design to final inspection?
5. Can you share case studies or references from similar projects?
6. Do you offer OEM/ODM services, and how do you support rapid prototyping?
7. How do you integrate automated systems for quality assurance and defect detection?
8. What’s your approach to cost optimization without compromising quality?

A partner who answers these confidently, with evidence of their capabilities, is likely a good fit. Don’t hesitate to visit their facility or request a trial project to see their process in action.

Conclusion

Quality-engineered sand casting is transforming manufacturing, delivering precise, reliable parts for industries where failure isn’t an option. Technologies like 3D scanning ensure dimensional accuracy, while abrasion control and NDT catch defects early, saving time and costs. Real-world applications, from automotive engine blocks to heavy machinery parts, prove the value of these advancements.

Choosing the right casting partner is your next step, work with Hanke Construction Machinery Manufacturing Co., Ltd, we are one of the best in this industry. Look for ISO certifications, advanced scanning and NDT capabilities, and a track record of success in your industry. Ask tough questions to ensure they can deliver the precision and reliability you need. By investing in a quality-engineered casting partner, you’re not just buying parts—you’re securing a competitive edge.

Ready to find the perfect partner? Explore our sand casting services, dive into our inspection and NDT capabilities, or check out our case studies to see quality engineering in action.
